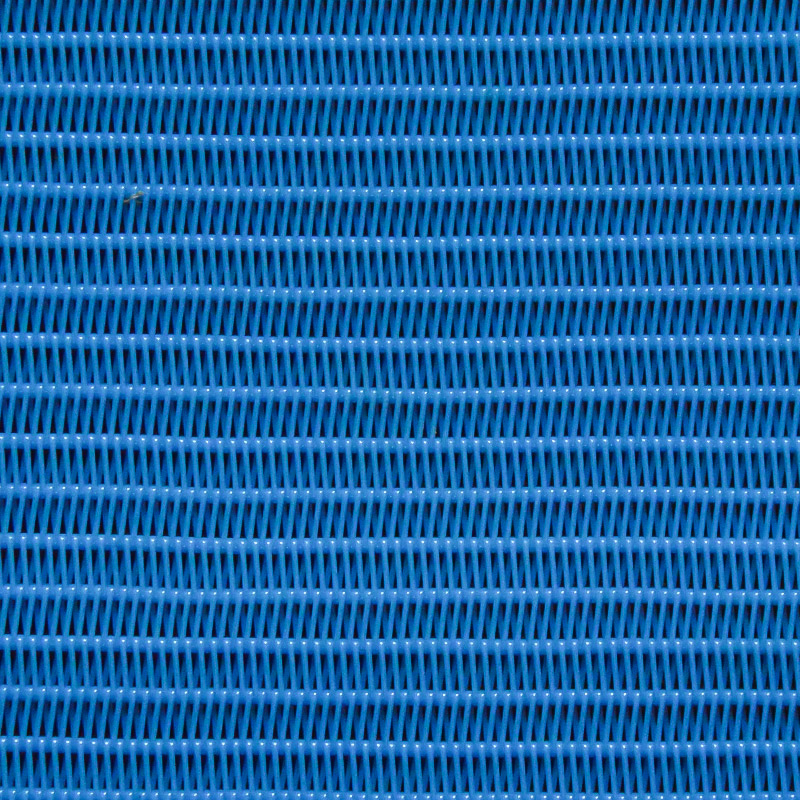

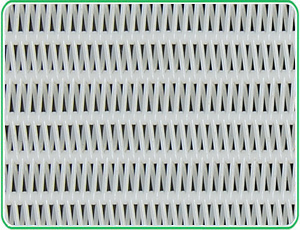

Polyester Spiral Dryer Fabrics are suitable for drying packing paper, cultural paper, board paper and pulp board which be requested with big quantity.
The polyester spira fabrics have the advantage of larger air permeability, flat surface, good strength, long working time and joining or not arbitrarily.
Polyester Dryer Fabrics is widely used in paper making, mining, food, pharmaceutical, printing and dyeing, rubber industry.
Polyester Spiral Fabrics also could be used as conveyor belt and the laminating machine matching belt.
The Dryer Fabrics which in special material have the characteristics of high temperature resistance, abrasion resistance and aging resistance etc.
| Types of Spiral Dryer Fabric | Model of Fabrics | Wire diameter (mm) | Strength(N/cm) | Permeability (m³/㎡h) |
| Warp | Weft | Area of the surface |
| Coarse Loop | LW90110 | 0.90 | 1.10 | ≥2300 | 21000±500 |
| Large Loop | LW4080 | 0.90 | 1.10 | ≥2000 | 18000±500 |
| Medium Loop | LW3868 | 0.70 | 0.90 | ≥2000 | 16000±500 |
| Fine Loop | LW3560 | 0.6 | 0.80 | ≥2000 | 15000±500 |
| Micro Loop | LW3252 | 0.50 | 0.70 | ≥1800 | 15000±500 |
| Medium Loop (Flat Wire) | JLW3868 | 0.48*0.82 | 0.80 | ≥2000 | 10000±500 |
