Polyester plain fabrics

Availability:
Quantity:
Inquire Add to Basket

The 2-shed and 3-shed polyester plain fabrics are mainly used in special lines of paper making industry, such as paper pulps making, packing and liner cardboard making, etc.

Polyester plain fabrics also could be used in mining isdustry for sieing or conveyor belt, high density board making, food drying, sludge dehydration equipments, concentrate and other filtration industries.

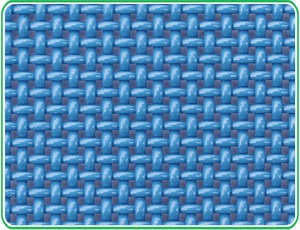

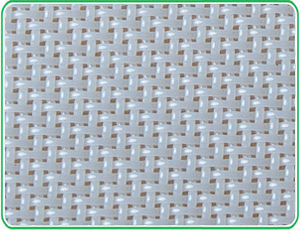

Polyester plain fabrics Polyester plain fabrics

Plain weave polyester network series Polyester plain fabrics




 Model of Fabrics  Wire diameter (mm)  Density (wire/centimeter) Strength(N/cm)  Permeability (m³/㎡h)
 Warp  Weft  Warp  Weft  Area of the surface
 03902  0.90  0.90  3.14  3.14  ≥1650  20000±500
 05802  0.80  0.80  5.1  5.3  ≥1700  15840±500
 06802  0.80  0.80  6.6     6.5        ≥1650  11600±500
 06702/blue/white  0.70  0.70  6.3   6.3       ≥1800  11000±500
 07802/blue/white  0.80  0.80  7.8  7  ≥1800  7000±500
 09502  0.50  0.50  8.85  8.46  ≥1850  10100±500
 12502  0.50  0.50  13.5  8.5  ≥1900  6500±500
 09452  0.45  0.45  10  8.6  ≥1900  15570±500
 08603  0.50  0.60  9.4  9  ≥1950  9000±500
 07903  0.80  0.80  7.48  6.69  ≥1950  6400±500
 122702  0.25  0.27  11.8  10.6  ≥2000  5600±500
 163502  0.40  0.35  16  13  ≥2100  5500±500
